HEAVY DUTY INDUSTRIAL SCRAP METAL SHREDDER MACHINE

The Application Challenge

Processing compressed metal bundles presents severe operational hurdles for conventional equipment:

Extreme resilience and density of baled aluminum profiles and compressed wires.
Severe material slippage and continuous rotor bouncing during initial cuts.
Feeding bottlenecks that heavily degrade hourly throughput.

Get the latest quote

WATCH VIDEO

Application Range: From Aluminum Bales to Heavy Scrap Meta

Processable Materials: Compacted Aluminum, Copper Scrap, and Automotive Fractions

UBC Bales

UBC Bales / Compressed Cans

Aluminum Profiles

High-Density Extrusion Bales

Copper Scrap

Compressed Copper Bundles

ELV Car Bodies

Automotive Scrap Shells

Copper Wire Bales

High-Purity Loose Copper Strands

Automotive Components

Mixed Ferrous Non-Ferrous Scrap

Description

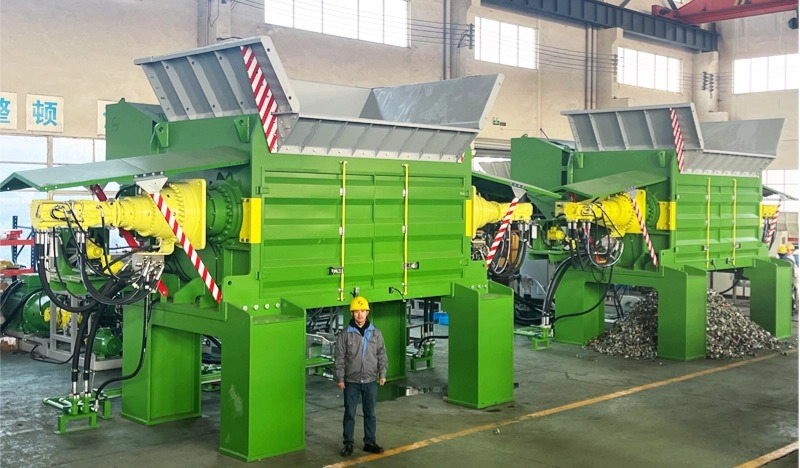

SOYU High-Capacity Heavy-Duty Metal Shredders

The SOYU Series of HEAVY DUTY INDUSTRIAL SCRAP METAL SHREDDER MACHINES represents the pinnacle of engineering for high-volume scrap aluminum processing. Featuring an expansive cutting chamber of up to 3,000mm, this heavy-duty single shaft series is purpose-built for large-scale industrial sorting facilities that demand maximum throughput, extreme structural durability, and relentless 24/7 reliability during continuous, heavy-load aluminum recycling operations.

The SOYU Precision Solution

The SOYU HEAVY DUTY INDUSTRIAL SCRAP METAL SHREDDER MACHINE is engineered to crush these obstacles:

Ultra-High-Torque Powertrain: Delivers relentless shearing force through tough metals.
Massive Internal Hydraulic Ram: Forces tightly compacted bales directly into the rotor paths.
Zero Material Bounce: Eliminates slippage with a powerful, continuous positive-feed mechanism.
Smelting-Ready Output: Transforms dense bundles into highly uniform, high-bulk-density fragments.
Downstream Optimization: Delivers perfectly clean-cut feedstock for automated sorting and magnetic separation.

Target Applications & Feedstocks

1. Non-Ferrous Metals & Lightweight Feedstock

Aluminum Profiles & Bales: High-density baled extrusion aluminum profiles, alloy window frames, and aluminum construction formworks.
Compacted UBC Bales: Highly compacted and compressed Used Beverage Can (UBC) scrap bales.
Aluminum & Copper Wires: Heavily compacted aluminum wire bales, thick industrial copper/aluminum cables, and ACSR (Aluminum Conductor Steel Reinforced).
Cast Aluminum & Shreds: Automotive aluminum wheels/rims, engine blocks, transmission cases, and mixed non-ferrous fractions.
Copper Scrap: Discarded copper pipes, baled copper wire, copper transformer cores, and brass radiators.

2. Ferrous Metals & Mixed Scrap Steel (HMS & ELV)

End-of-Life Vehicles (ELV): Flattened or loose car bodies, automotive sheets, stripped vehicle shells, and pre-cut car scrap blocks.
Lightweight Industrial Scrap: Industrial stamping waste, sheet metal offcuts, tinplates, steel strapping bands, empty steel drums, and paint pails.
Demolition & Domestic Scrap: Discarded bicycles, motorcycle frames, metal fences, and white goods sheets (refrigerators, washing machines, etc.).
Pre-Shredding Feedstock: Medium-thickness carbon steel sheets, mixed industrial structures, and bulky steel scrap requiring pre-reduction before hammer mills or melting furnaces.

3. Electronic Waste & High-Value Composites (WEEE)

Electronic Scrap (WEEE): Computer chassis, server racks, telecommunication cabinets, and heavy-duty copier/printer metal shells.
Industrial Metal Composites: Industrial electric motor rotors (with steel housings), aluminum-plastic composite panels, and light rail/subway car metal interiors.

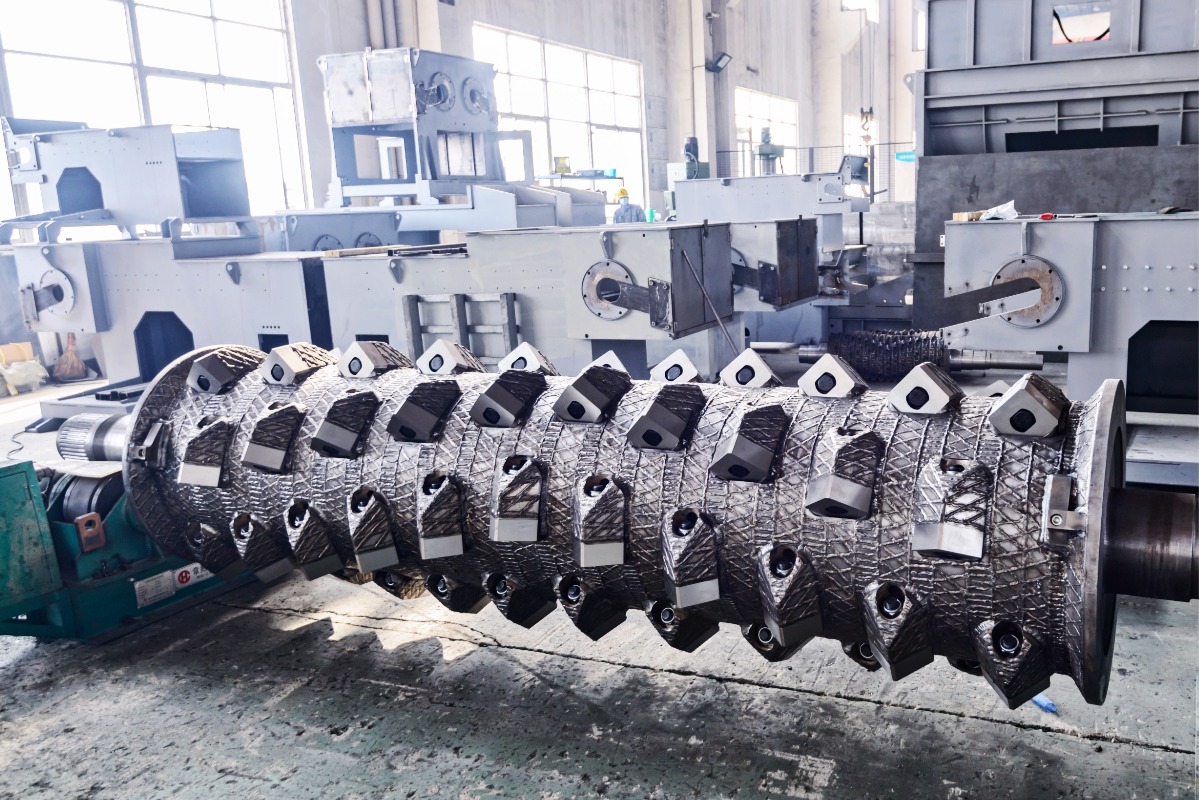

Heavy-Duty Precision Rotor

Featuring aggressive V-cut geometry and surface-hardened D2/DC53 steel indexable knives, this dynamically balanced precision rotor eliminates material slippage while providing maximum impact resistance and zero vibration under extreme, heavy-load scrap metal shredding operations.

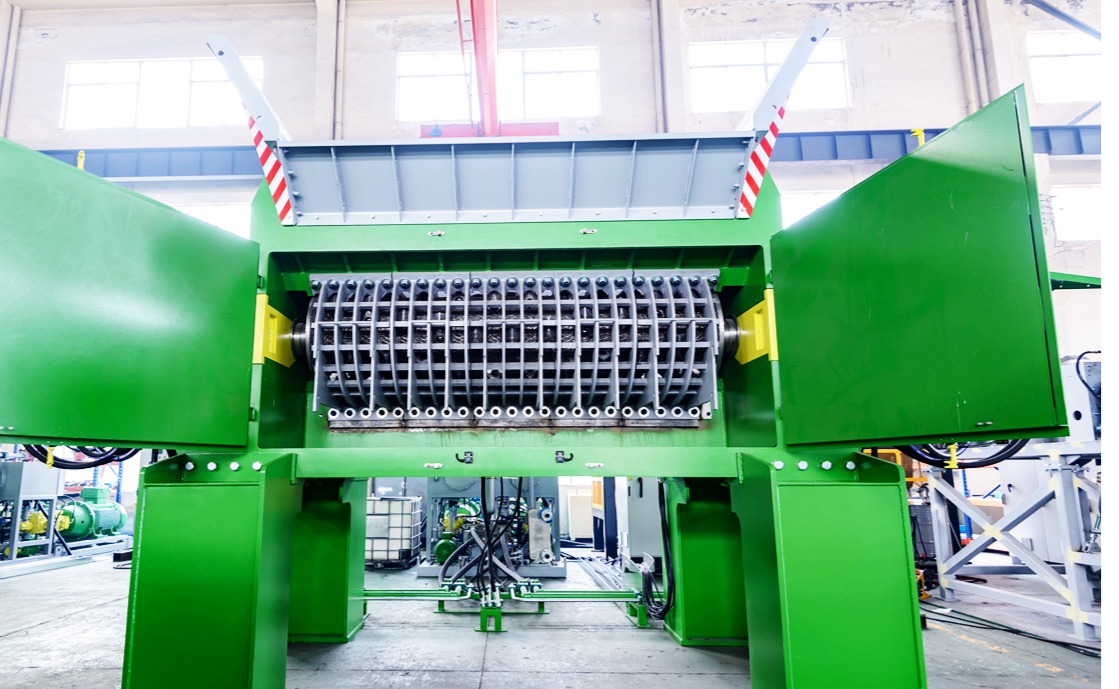

Hydraulic-Operated Screen Unit

The hydraulic-actuated screen unit and access door are engineered for maximum convenience. This system allows for the swift opening of the chamber, providing easy access for screen inspections, cleaning, or replacement, ensuring your production line maintains peak efficiency.

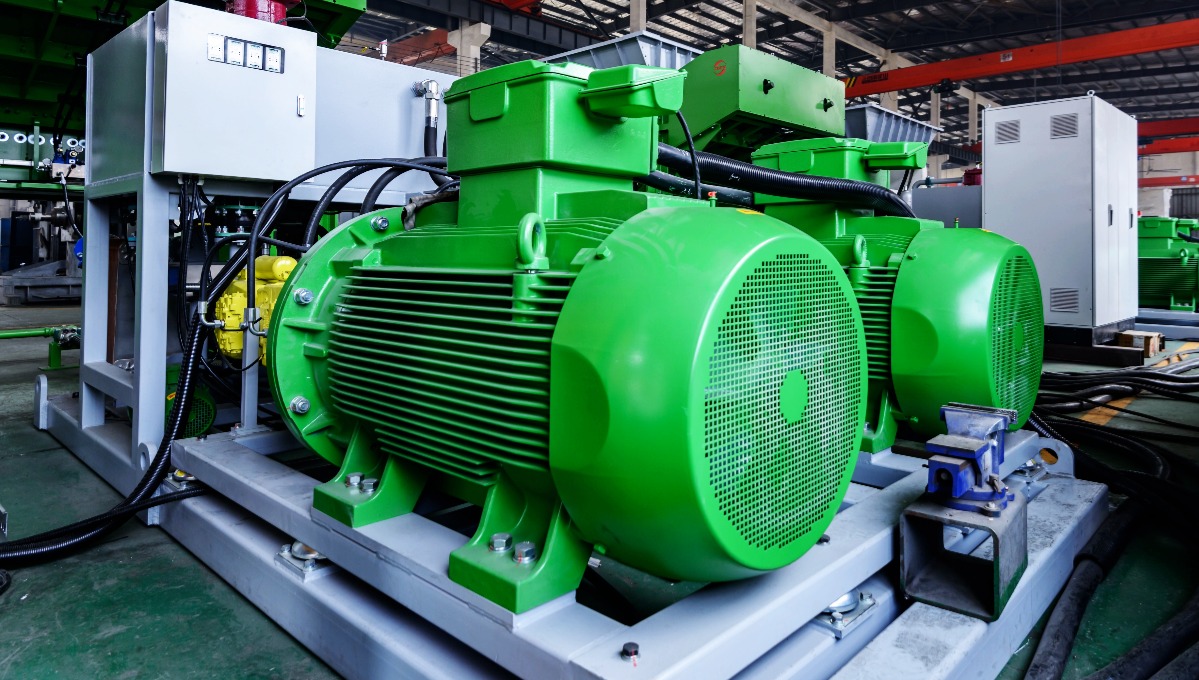

High-Efficiency Frequency Converter (VFD) System

Equipped with premium imported VFD technology from industry leaders like Siemens or ABB, this high-efficiency frequency converter system delivers precision speed control and dynamic load management while ensuring a grid-protecting soft start that slashes energy consumption by up to 30%.

Certified Quality & Premium Components

SOYU machinery is built to the highest industrial standards. Our heavy duty industrial scrap metal shredder machines are ISO 9001 and CE certified, ensuring maximum safety and processing performance. To guarantee 24/7 reliability in scrap metal recycling, we integrate world-class components from industry leaders like Siemens, Schneider, and NSK into our drive and control systems.

FAQ: Heavy Duty Industrial Scrap Metal Shredder Machine

Q1: Does SOYU provide single shaft or double shaft metal shredders? How do I choose between them?

A: SOYU manufactures both heavy-duty single shaft metal shredders (equipped with internal hydraulic pusher rams) and heavy-duty double shaft metal shredders. The choice depends on your material bulk density and target output size requirements:

Single Shaft Metal Shredder (With Pusher Ram): Ideal for processing high-density, highly resilient baled materials (e.g., extrusion aluminum profile bales, compressed aluminum wire bundles, highly compacted UBC bales). It utilizes a hydraulic ram to force dense bales into the cutting path. Equipped with a bottom screen, it guarantees precisely controlled, uniform particle sizes with high bulk density, perfect for secondary smelting feedstock.
Double Shaft Metal Shredder (Counter-Rotary Shear): Engineered for processing bulky, hollow, or mixed loose scrap metals (e.g., ELV car bodies, discarded white goods sheets, metal fences, steel strapping bands, large steel drums). Operating without a pusher or screen, it relies on two high-torque shafts rotating inward to aggressively grab and tear large-volume metal waste for primary size pre-reduction.

Q2: Why must the heavy-duty single shaft metal shredder be equipped with an internal hydraulic pusher ram?

A: Dense metal bales like compressed aluminum extrusion profiles or tightly packed UBC cans are incredibly resilient and smooth. Standard rotors without continuous force often suffer from severe material slippage and rotor bouncing, heavily degrading hourly throughput. SOYU’s massive internal hydraulic pusher ram forcefully and continuously drives the compressed bales directly against the V-cut cutting path. This relentless positive-feed mechanism eliminates bouncing and slippage, ensuring peak processing efficiency 24/7.

Q3: Mixed scrap steel often contains unshreddable tramp metals. How does the machine handle catastrophic shocks?

A: We incorporate a multi-layered protection matrix across electrical, software, and mechanical systems:

Smart PLC Auto-Reversal (Siemens/Schneider): If an unshreddable rigid foreign object spikes the motor current, the PLC system triggers a millisecond-level Automatic Reversal to release and rearrange the scrap before automatically resuming forward shredding.
Rubber Shock Absorbers (Drivetrain Protection): Industrial-grade high-damping rubber dampers are integrated into the drivetrain. They instantly cushion peak torque shocks caused by violent metal fragmentation, shielding the heavy hardened-gearbox from mechanical fatigue.
Intelligent Hydraulic Maintenance Gate: Operators can deploy the automated hydraulic gate via intuitive controls for instant chamber access, allowing rapid and safe removal of non-shreddable contaminants.

Q4: Metal recycling environments are highly abrasive. How does SOYU guarantee long blade and rotor lifespans?

A: Discarded metals often carry highly abrasive grit and sand. The entire SOYU rotor features advanced surface-hardening and anti-wear coatings to maximize impact resistance under extreme heavy-load conditions. The cutting knives are crafted from premium imported D2 or DC53 tool steel. Furthermore, our square knives feature a 4-way rotatable (indexable) design. Once one cutting corner wears down, simply loosen the bolt and rotate the knife 90 degrees to expose a fresh edge. Each blade can be used four times, drastically cutting down consumable costs.

Q5: Will the dense metal dust or sparks generated during processing damage the bearings or gearbox?

A: Absolutely not. SOYU utilizes an outward-offset bearing seat design. The heavy-duty bearing housings are mounted entirely outside the shredding chamber with a physical isolation gap and open discharge slot between them. Fine static-heavy metal dust or moisture cannot pass through the multi-labyrinth seals into the bearings or gearbox housings, securing stable, uninterrupted 24/7 heavy-duty plant runs.
